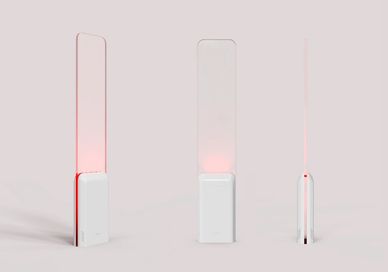

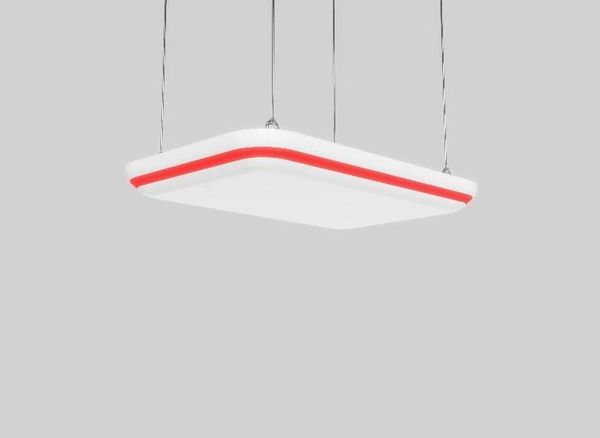

The A8065 Combo offers a complete doorway solution comprising three distinct antennas: A8065V, A8065H,  and A8065D. Positioned on either side of the doorway, the A8065V and A8065H antennas are vertically and  horizontally linearly polarized, respectively. In addition to these side antennas, the combo includes a single  overhead antenna, the A8065D, which boasts dual linear polarization with two ports. The A8065D emits RF  signals that are linearly polarized both horizontally and vertically. This versatile A8065 combo can read tags in  any orientation and plane, making it ideal for various applications such as item-level tracking in retail, tracking  conference attendees, and monitoring patients or assets in hospital hallways, among others.

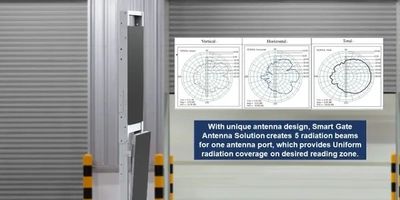

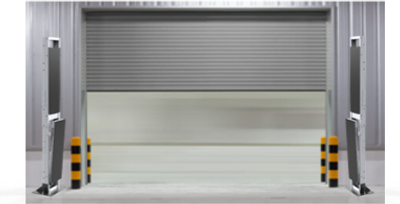

ADT-11 apply advanced antenna design technology to enhance RFID tracking performance in industrial environment. ADT-11 provide superior radio energy coverage in designed reading zone. With multi-diversity, spatial diversity and polarization diversity, ADT-11 can further eliminate blind spot in designed reading zone. Because of the balance design between Tx and Rx channel, ADT-11 antenna solution can easily eliminate the stray read by simply adjustment of basic reader parameter.

◼ Frequency: 902MHz – 928MHz

◼ Polarization: Multi-linear

◼ VSWR: <2:1

◼ Peak Gain: 7dBi

◼ Connector: RP-TNC Jack

◼ Radiation pattern: Multi-beam

◼ Size: 120cm x 30cm x 9cm

◼ Weight: 12kg

◼ Material: Iron with painting (RAL7035) & UV protected ABS (Black)

◼ Fixing: Footpad with floor mounting hole

◼ Environment: Temp = -20℃-75℃ / Humidity  = 90% non-condense

The SlimLine RTAS is a complete high performance ground mat antenna system, which is fully optimized for  race timing and event management applications. Ready to be deployed in a matter of minutes, the RTAS offers true portability with fast and easy setup – allowing for rapid race timing and event management deployments with ease and performance. Leveraging the product innovations of the unbeatable SlimLine A5530, the RTAS offers features such as:

❖ Ability to seamlessly connect up to 7 antennas - with finishing line stripe

❖ Color-coded antenna mats & complete color-coded cable set (up to 7 antennas)

❖ Integrated cable channels to protect and hide away cables

❖ Inter-connecting straps to firmly keep antennas aligned and in place

❖ All cables included, with each mat antenna having 2 m / 6 ft. clear cable free for reader connection

❖ SMB-SMA adapter included for antenna protection and easy cable replacement
